Web and Mobile Development: OAuth

Bill Mongan

Making a Web Service Call

• We need:
  • An HTTP request
  • A JSON parsing library
  • Documentation of the service interface and response
• Sometimes, we need an API key to access our account

Making a Web Service Call

• How do we get and store this key?
  • Store it in the program? (No!)
  • Ask them to type it in? (No!)
  • Save it in a file? (OK, just protect the file!)

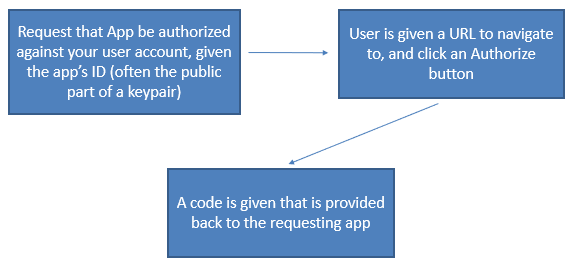

OAuth

• A protocol for authenticating a user against a trusted service provider
• The user logs into their service with our app ID as a parameter
• The user authorizes our app to access their account
• We are provided with an access token or “key”

From SAML to OAuth

• Security Assertion Markup Language (SAML) provided an initial standard
• OAuth has evolved the protocol

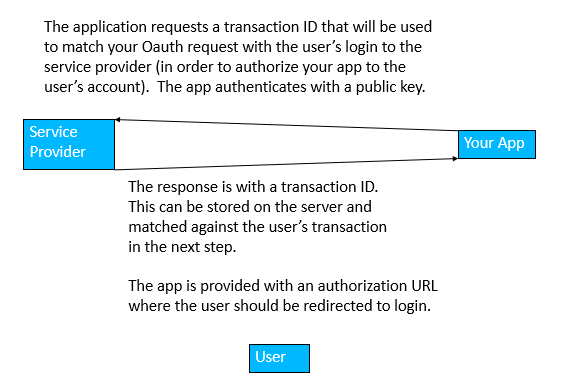

OAuth

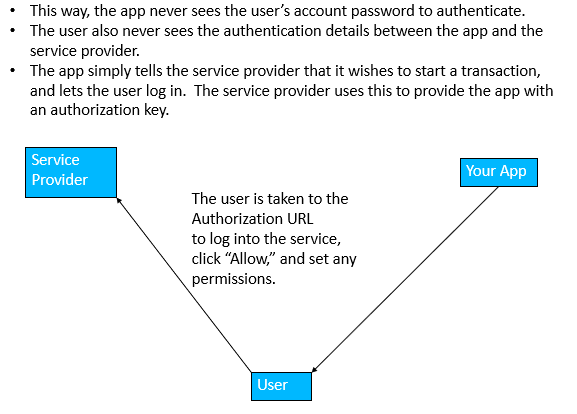

OAuth

OAuth

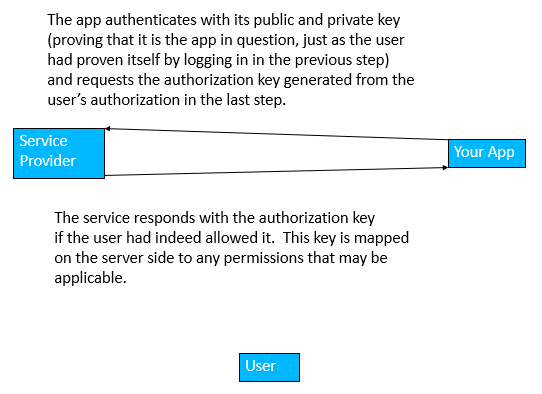

OAuth

• These are accomplished with RESTful calls.
• Users can paste the resulting key, but we can automate this by providing server-side service endpoints of our own that receive the key directly.

Example: Twitter

• Add a Developer App to get an application key
  • This is what identifies our app to Twitter when a user first authenticates to give us permission
• OAuth 1.0 Reference

Example: Twitter

• Step 1: Initiate a Request for our app with Twitter: POST https://api.twitter.com/oauth/request_token

Header:

OAuth oauth_nonce="K7ny27JTpKVsTgdyLdDfmQQWVLERj2zAK5BslRsqyw", oauth_callback="http%3A%2F%2Fmyapp.com%3A3005%2Ftwitter%2Fprocess_callback", oauth_signature_method="HMAC-SHA1", oauth_timestamp="1300228849", oauth_consumer_key="OqEqJeafRSF11jBMStrZz", oauth_signature="Pc%2BMLdv028fxCErFyi8KXFM%2BddU%3D", oauth_version="1.0"

• Response is passed to the server oauth_callback as an oauth_token

oauth_token=Z6eEdO8MOmk394WozF5oKyuAv855l4Mlqo7hhlSLik&oauth_token_secret=Kd75W4OQfb2oJTV0vzGzeXftVAwgMnEK9MumzYcM&oauth_callback_confirmed=true

Example: Twitter

• Step 2: User Login: GET https://api.twitter.com/oauth/authenticate?oauth_token=<OAUTH TOKEN>

• A callback is made to your initial callback with an oauth_token and oauth_verifier as parameters

Example: Twitter

• Step 3: Get Token: POST https://api.twitter.com/oauth/access_token?oauth_token=<OAUTH TOKEN>&oauth_verifier=<OAUTH VERIFIER>

• When should we make this call?

• Response:

oauth_token=6253282-eWudHldSbIaelX7swmsiHImEL4KinwaGloHANdrY&oauth_token_secret=2EEfA6BG5ly3sR3XjE0IBSnlQu4ZrUzPiYTmrkVU&user_id=6253282&screen_name=twitterapi

Example: Twitter

• Parse url query arguments into json:

require('url');

// ...
function (req, res) {
    const queryObject = url.parse(req.url,true).query;
    // this is now json
}

Example: Twitter

• Use the key as follows:

curl -XPOST
  --url 'https://api.twitter.com/1.1/statuses/update.json?status=hello'
  --header 'authorization: OAuth
  oauth_consumer_key="oauth_customer_key",
  oauth_nonce="generated_oauth_nonce",
  oauth_signature="generated_oauth_signature",
  oauth_signature_method="HMAC-SHA1",
  oauth_timestamp="generated_timestamp",
  oauth_token="oauth_token",
  oauth_version="1.0"'

• How might we use the previous response to facilitate user logins to our application, without requiring a password of our own?

OAuth 2.0 Bearer Tokens

• If you are just accessing general data, and not manipulating / accessing a specific uesr’s account, the process is simplified.
• No login is required
• Request a “Bearer Token” that you pass in the header of each subsequent request

Example: Twitter

• Application-only Bearer Token
• Obtaining a Token
• POST https://api.twitter.com/oauth2/token
  • Header: Authorization Basic <INPUT>
  • Header: application/x-www-form-urlencoded;charset=UTF-8
• Body: grant_type=client_credentials

Example: Twitter

• <INPUT> is the Base-64 encoded app consumer key concatenated with a colon, concatenated with the consumer secret.

• Response:

  {"token_type":"bearer","access_token":"AAAA..."}


Using Bearer Tokens

• Include a header in subsequent calls that includes the token/key you’ve obtained:

Authorization: Bearer <KEY>
