CS173: Intro to Computer Science - ASCII Art (100 Points)

Assignment Goals

The goals of this assignment are:
  1. To traverse and manipulate a 2-dimensional array
  2. To compute weights from data features

Background Reading and References

Please refer to the following readings and examples offering templates to help get you started:

The Assignment

In this assignment [1], you will work with with 2D arrays in Java with a concrete, visual application. Students will write a program to automatically generate “ASCII Art”, which is text that approximates a given image. An example is given below with the UC logo. In this assignment, we will restrict ourselves to characters in the ASCII subset of UTF-8, including lowercase letters, uppercase letters, and some special characters; hence the name “ASCII Art.”

Please download the skeleton code for this assignment. You will be editing src/ASCIIArt.java.

Part 1: Grayscale Images and Text

As we discussed in our 2D arrays module, a 2D array is a natural data structure for image data, since an image is a two dimensional object with both an x and y coordinate for each pixel. In this assignment, we will be dealing with grayscale images, in which each pixel goes from black (0) to white (1). We usually treat the outer array index as a row (y coordinate) and the inner array index as a column (x coordinate). For instance, let’s run the following code, using the methods provided in the assignment:

Picture picture = new Picture("Examples/ursinus.png");
double[][] image = getGrayscaleArray(picture);

This code will load in the Ursinus image at the top of this page as a grayscale image. The figure below shows an example of how to index three different pixels in this image, as well as their value in the array. As you can see, pixels which are darker have a value closer to 0, and pixels which are lighter have a value closer to 1.

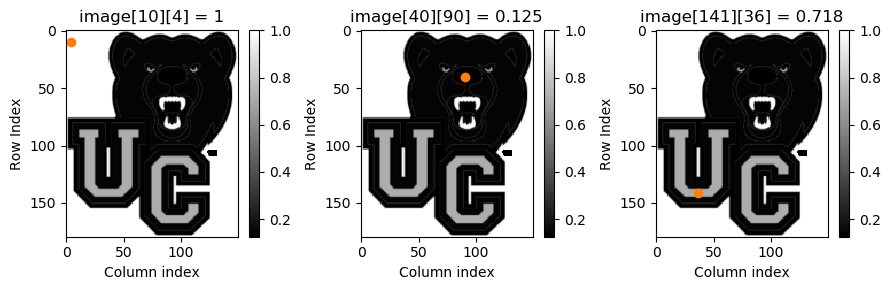

Three Ursinus Bears in greyscale with sample pixels identified

To turn this into text, we observe that certain characters are “darker” than others if we squint our eyes; that is, certain characters require more ink than others to draw in the same area. Our goal, therefore, will be to print out darker characters for darker images in the region, and lighter characters for lighter regions. Let’s consider using all of the character below, for example:

@#BW8gMN6&9RQqE0d$DbpmOa5AH2GZeKPS3X4U%kwohFVyzIsCu{xfn}tJTi17c=jYL?l[]v<>+|)r(/\*_!;^~":,-'.`

This can be represented as a constant string GRAYSCALE_CHARS, and can be found in the sample code provided. If you look closely, you will see that these characters have been sorted roughly in order from darkest to lightest. Assuming you’re using the default font in Netbeans’s console, the image below shows these characters blown up, along with the percentage of the canvas taken up by their ink:

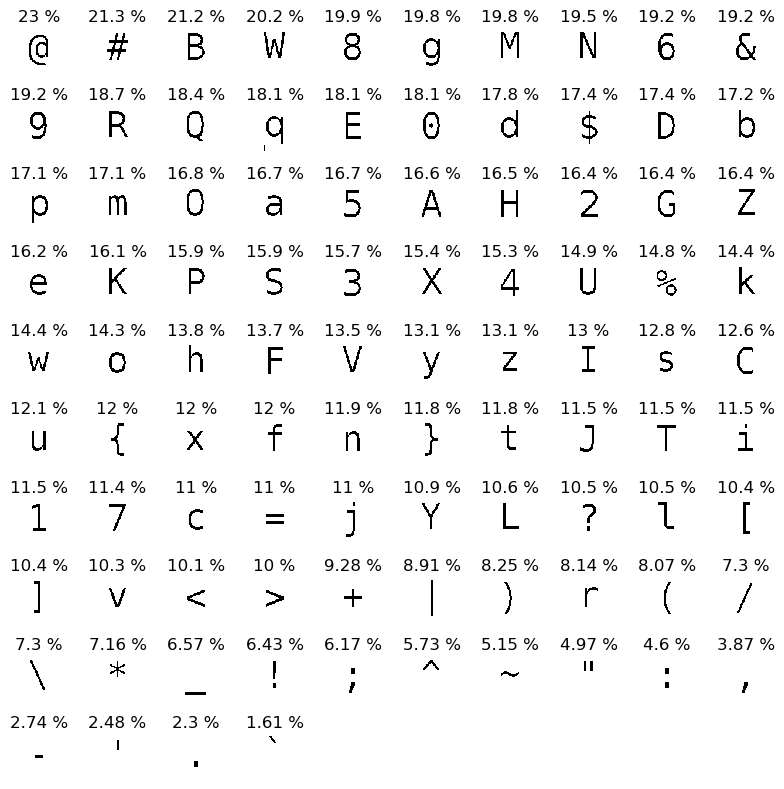

Grayscale characters with their relative ink weights, in descending order by their weight

A constant array called GRAYSCALE_VALUES has also been provided, which is parallel to the array GRAYSCALE_CHARS, and which holds a 0 for the darkest one and a 1 for the lightest one. For instance:

System.out.print(GRAYSCALE_CHARS.charAt(2) + " ");
System.out.print(GRAYSCALE_VALUES[2]);

prints out B 0.08205. This indicates that a B is a darker character, with a grayscale value of only about 0.08.

Finding the Smallest Item in an Array

To find any particular item in an array, you can iterate over the array and use a conditional to check its value.

Searching an array

Searching for the smallest item in an array is similar to searching an array, except that you don’t have a specific key that you’re looking for. Instead, keep track of the smallest key value you’ve seen in the array so far, and update it if the current array item is smaller. Choose an initial value for key that is so large that even the first item will seem smaller.

Searching an array

Part 2: Rectangular Averaging

At this point, we could simply print out a row of text for each row in the grayscale image, and print out the character at the index of GRAYSCALE_VALUES with the closest grayscale value. However, not only would this print out way too many characters, but the characters are only printed out half as wide as they are tall, so this would end up printing out an image that’s stretched out by a factor of 2 vertically (the “aspect ratio” would be wrong). To address both of these problems, we can output a single character per block of pixels. In particular, we can average all of the grayscale values in a rectangular block that’s twice as tall as it is wide, and print out a single character for this block. To see an example, let’s consider taking a block that’s 8 pixels tall and 4 pixels wide in different parts of an image of an Ursinus flag.

If we take a block in a bright region, the average grayscale is very high, so it ends up getting a single quote, which has very little ink.

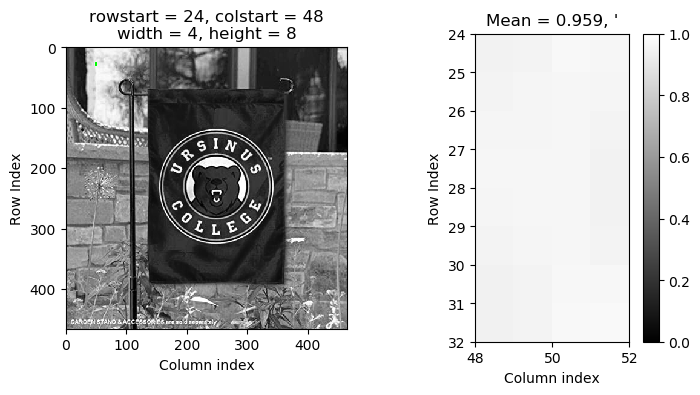

Ursinus flag with a bright pixel in the upper right region highlighted

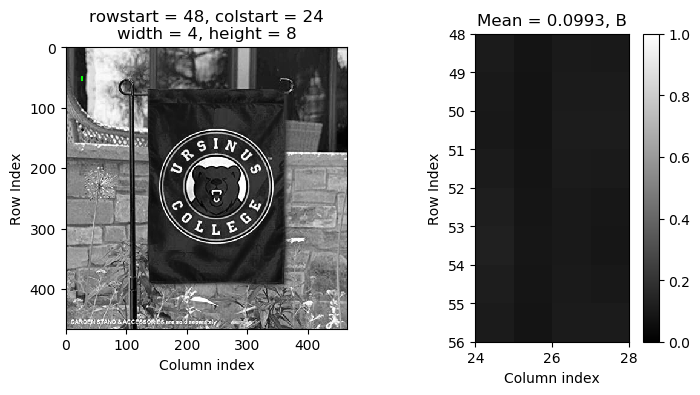

If we take a dark region in the tree, the average is quite low, and it gets an uppercase B, which is one of the characters that uses the most ink.

Ursinus flag with a dark pixel in the upper right region highlighted

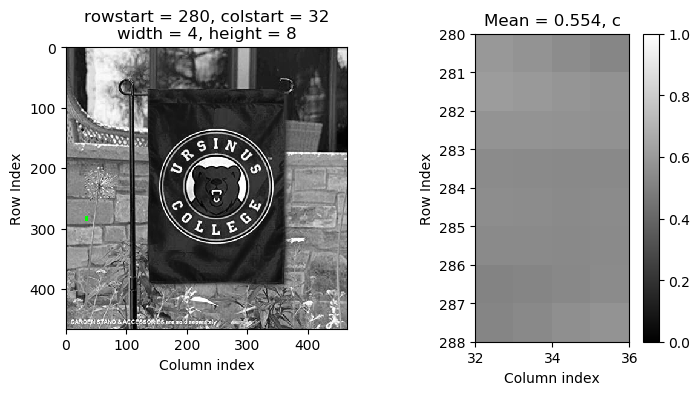

If we take a block that’s one one of the bricks, it’s somewhere in between, so the average is about middle gray, which ends up getting a lowercase c, which uses a medium amount of ink.

Ursinus flag with a medium-dark pixel in the upper right region highlighted

When you do this, you should take all non-overlapping blocks in the image that you can. So, for instance, the above image is 466x466 pixels. This means that if we use a block that’s 8 tall and 4 wide, we can fit 59 blocks from top to bottom and 117 blocks from left to right. For instance, the block that started at row 28 and column 32 in the above image is 35 rows down and 8 columns over.

Be careful not to run out of bounds when taking pixels in a block. The rightmost and bottommost blocks won’t actually have 8x4 pixels in them, because you’ll run out of space. Below is an example on traversing subpixels in a 2-dimensional array (the graphic!).

Manim animation of traversing subsquares in a 2D array

Code to Write

You should fill in ASCIIArt.java to print out rows of text to create ASCII art following the above procedure. You will have to come up with your own methods and way of organizing the code, but you should do the following steps at some point:

  • Begin by computing each pixel individually (that is, a width and height of 1). Find the index of the greyscale value nearest to your pixel, and retrieve the corresponding index from the greyscale characters array. This is the character that most closely resembles your pixel.
  • Print that pixel to the screen as you move across the row of pixels. Print line breaks at the end of each row of blocks.
  • Now, modify this program to specify a width and height of a block. For example, if your width is 4 and your height is 8, you will iterate over the first 8 rows, and the first 4 columns, computing the average greyscale value in the image. You would then consider the first 8 rows and the next set of 4 columns, and so on. When you reach the end of the row, repeat this process for the next set of 8 rows. Your function and loop should not hard code the width and height: they should be variables and function parameters!
  • For each non-overlapping block, average the greyscale values in that block, find the character with the closest grayscale value according to GRAYSCALE_VALUES, and print that character out, like you did before.

Hints

  • In the Horstmann book, example 6.3.2 is a helpful reference for finding averages, and example 6.3.3 is a helpful example for finding the closest value to another value when you’re converting from brightness to a character. This is similar to finding the minimum value in a list - except that you are now finding the minimum difference from your greyscale value (how can you compute this?).
  • You’ll have to come up with your own way of organizing the code, but it may be a good idea to make a separate method to compute the average grayscale value in a block, and to call this method within a loop that loops through all blocks. You may also want to make a method that finds the character that’s closest to a particular grayscale value.
  • As usual, a part of your grade will be on style. So, among other things, be sure you’re naming your variables and methods appropriately.
  • Be careful not to go out of bounds when extracting blocks. Blocks at the edges may be smaller than other blocks since you’ll run out of space.
  • When you look at the text printed to the console, you will probably have to make the font size very small to see the full picture. CTRL DOWN makes the console text smaller and CTRL UP makes the text larger

Examples

Below are some examples of ASCII art generated with a working implementation.

The following image has been provided in the starter code Examples/ directory.

Ursinus Bear Logo

You can load this in with the following code

Picture picture = new Picture("Examples/ursinus.png");
double[][] image = getGrayscaleArray(picture);

Using blocks with 4 rows tall and 2 columns wide, we get the following ASCII art image:

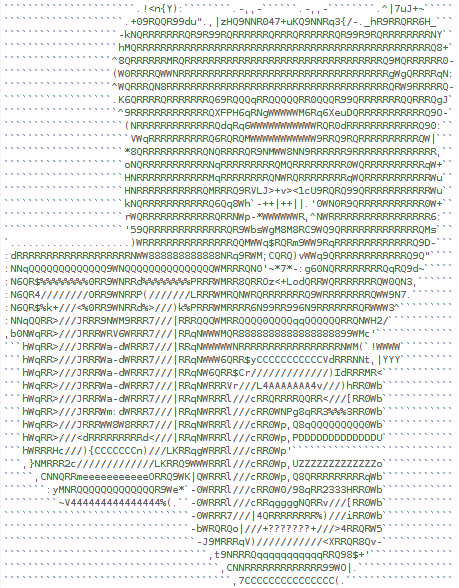

Ursinus Bear Logo ASCII Rendering

Parker’s Pumpkin

The following image has been provided in the starter code Examples/ directory. It was created by Parker Fairchild in CS 476.

Parker's Pumpkin

You can load this in with the following code

Picture picture = new Picture("Examples/pumpkin.png");
double[][] image = getGrayscaleArray(picture);

Using blocks with 4 rows tall and 2 columns wide, we get the following ASCII art image:

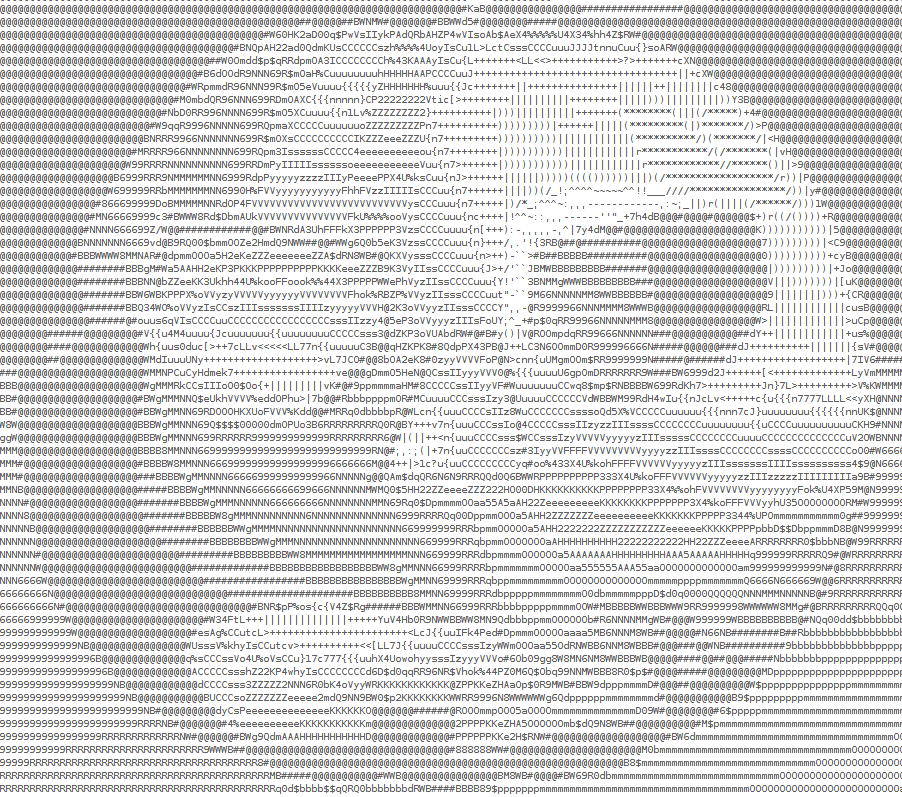

Parker's Pumpkin ASCII Rendering

Mona Lisa

The following image has been provided in the starter code Examples/ directory.

Mona Lisa

You can load this in with the following code

Picture picture = new Picture("Examples/MonaLisa.png");
double[][] image = getGrayscaleArray(picture);

Using blocks with 4 rows tall and 2 columns wide, we get the following ASCII art image:

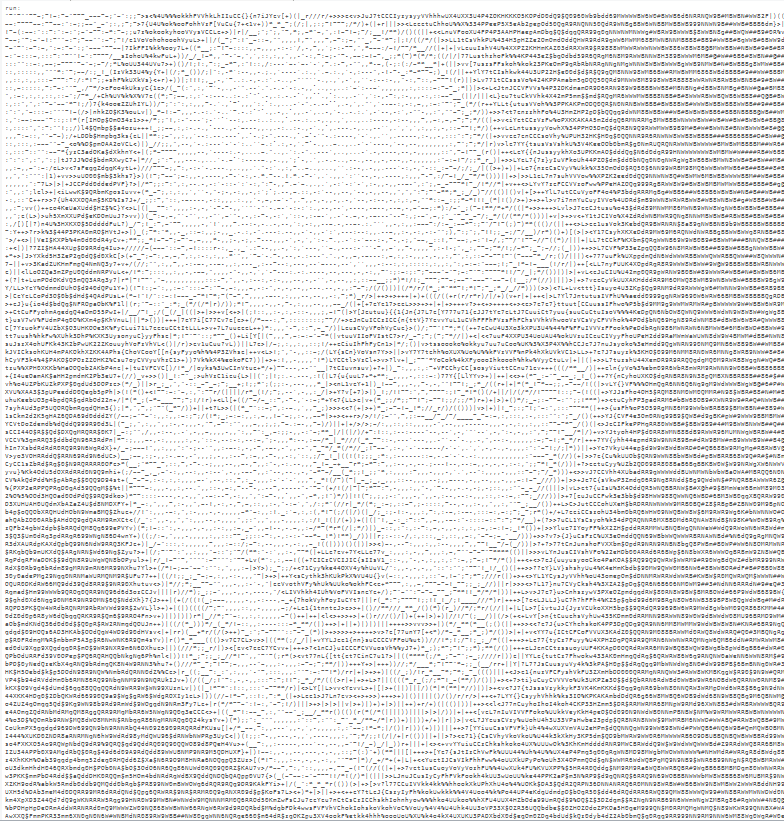

Mona Lisa ASCII Rendering

R2 D2

The following image has been provided in the starter code Examples/ directory.

R2 D2

You can load this in with the following code

Picture picture = new Picture("Examples/r2d2.png");
double[][] image = getGrayscaleArray(picture);

Using blocks with 8 rows tall and 4 columns wide, we get the following ASCII art image:

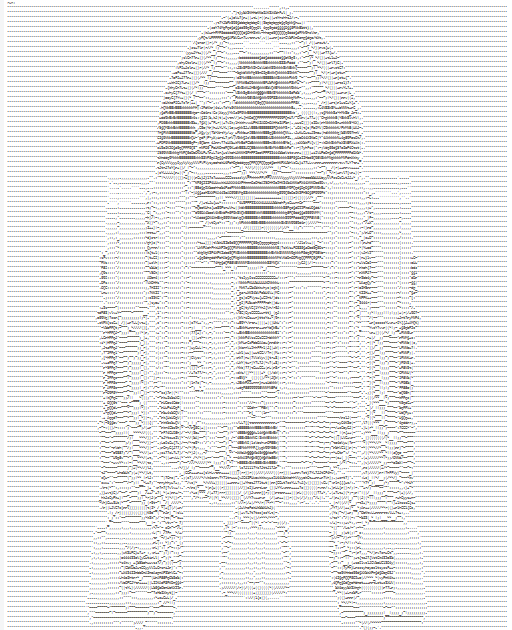

R2 D2 ASCII Rendering

Ursinus Flag

The following image has been provided in the starter code Examples/ directory.

Ursinus Flag

You can load this in with the following code

Picture picture = new Picture("Examples/ursinusFlag.png");
double[][] image = getGrayscaleArray(picture);

Using blocks with 2 rows tall and 1 column wide, we get the following ASCII art image:

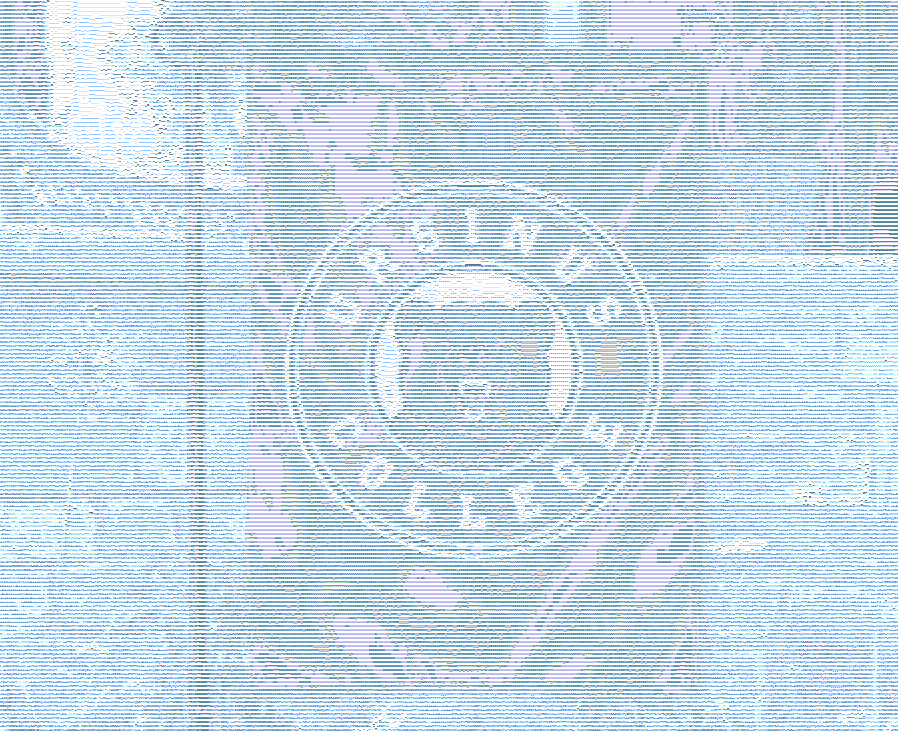

Ursinus Flag ASCII Rendering

Extra Credit: Art Contest

As an optional part of this assignment, students may create a submission as part of an art contest. Any submission whatsoever will receive 7.5% extra credit points, and the winner will receive an additional 7.5% extra cedit points.

In your README, in addition to the standard questions, please also indicate if you have a submission for the art contest. If so, do you give your permission to post publicly on the class web site? What name/pseudonym should I use when posting?

Finishing Touches and Writeup

Don’t forget to test your program with several different inputs to help verify that things work the way you expect! Think in terms of trying to break your program; if it’s really hard to “trick” your program into getting the wrong answer, you’ve probably done a good job making your code robust.

Also, check the Style Guide to make sure that you’ve written high quality code; make sure your code is “readable,” well indented, uses good variable names, and includes good comments throughout the program.

When you’re done, write a README for your project, and save all your files, before exporting your project to ZIP. In your README, answer any bolded questions presented on this page. In addition, write a few paragraphs describing what you did, how you did it, and how to use your program. If your program requires the user to type something in, describe that here. If you wrote functions to help solve your problem, what are they, and what do they do? Imagine that you are giving your program to another student in the class, and you want to explain to them how to use it. What would you tell them? Imagine also that another student had given you the functions that you wrote for your program: what would you have wished that you knew about how to call those functions?

Exporting your Project for Submission

Here is a video tutorial describing how to write a README for your project, and how to export it. Be sure to save your README file before exporting the project, so that your work is included in the submission!

  1. Developed by Prof. Chris Tralie

Design Questions to Help You Begin

Please answer the following questions in your README file before you begin writing your program.
  1. What character is closest to pixel value 0.1? How did you figure that out?
  2. Suppose there are 20 pixels per row for an image that you're reading, your block size is 8 pixels wide, and you are reading the top row. The upper left corner is pixel (0, 0). What is the x pixel location for the next block that you read, and for the last block that you'll read in that row?

Submission

In your submission, please include answers to any questions asked on the assignment page in your README file. If you wrote code as part of this assignment, please describe your design, approach, and implementation in your README file as well. Finally, include answers to the following questions:
  • Describe what you did, how you did it, what challenges you encountered, and how you solved them.
  • Please answer any questions found throughout the narrative of this assignment.
  • If collaboration with a buddy was permitted, did you work with a buddy on this assignment? If so, who? If not, do you certify that this submission represents your own original work?
  • Please identify any and all portions of your submission that were not originally written by you (for example, code originally written by your buddy, or anything taken or adapted from a non-classroom resource). It is always OK to use your textbook and instructor notes; however, you are certifying that any portions not designated as coming from an outside person or source are your own original work.
  • Approximately how many hours it took you to finish this assignment (I will not judge you for this at all...I am simply using it to gauge if the assignments are too easy or hard)?
  • Your overall impression of the assignment. Did you love it, hate it, or were you neutral? One word answers are fine, but if you have any suggestions for the future let me know.
  • Any other concerns that you have. For instance, if you have a bug that you were unable to solve but you made progress, write that here. The more you articulate the problem the more partial credit you will receive (it is fine to leave this blank).

Assignment Rubric

Description Pre-Emerging (< 50%) Beginning (50%) Progressing (85%) Proficient (100%)
Algorithm Implementation (60%) The algorithm fails on the test inputs due to major issues, or the program fails to compile and/or run The algorithm fails on the test inputs due to one or more minor issues The algorithm is implemented to solve the problem correctly according to given test inputs, but would fail if executed in a general case due to a minor issue or omission in the algorithm design or implementation A reasonable algorithm is implemented to solve the problem which correctly solves the problem according to the given test inputs, and would be reasonably expected to solve the problem in the general case
Code Indentation and Spacing (10%) Code indentation and spacing are generally inappropriate or inconsistent Code indentation or spacing are generally appropriate but inconsistent in a few isolated instances Code indentation or spacing are appropriate or consistent, with minor adjustments needed Code indentation and spacing are appropriate and consistent
Code Quality (10%) Prior code quality feedback and style guide standards are not reflected in the submitted code to a great extent Code quality conforms to several standards in the course Style Guide, and progress is demonstrated in improving code quality from prior feedback Code quality conforms to the standards in the course Style Guide to a great extent, with a few identified areas of improvement Code quality substantially conforms to the standards in the course Style Guide
Code Documentation (10%) Code commenting and structure are absent, or code structure departs significantly from best practice Code commenting and structure is limited in ways that reduce the readability of the program; specifically, javadoc style comments are present for some functions Code documentation is present that re-states the explicit code definitions Code is documented at non-trivial points in a manner that enhances the readability of the program; specifically, javadoc style comments are present for all functions
Writeup and Submission (10%) An incomplete submission is provided, or the README file submitted is blank The program is submitted, but not according to the directions in one or more ways (for example, because it is lacking a readme writeup or missing answers to written questions) The program is submitted according to the directions with a minor omission or correction needed, including a readme writeup describing the solution and answering nearly all questions posed in the instructions The program is submitted according to the directions, including a readme writeup describing the solution and answering all questions posed in the instructions

Please refer to the Style Guide for code quality examples and guidelines.
